LION 4.0 - The Future to your Company

LION 4.0 is a software program developed by Novoferm to monitor, map and optimize the entire loading situation. Smart assistants allow (internet) access anywhere and at any time to the data of the connected warehouses. The modern user interface guides users intuitively to where they want to go.

Now is the time to start into the future. Secure the decisive competitive advantage for your company. LION 4.0 provides complete transparency and provides you for the first time ever with fact-based options for optimizing your loading operations and making them safer.

Application and Animation

Open Cockpit of

LION-Software

LION-Software 4.0
Bring the future to your company

Your advantages at a glance

Logistics 4.0 solution
Optimization of any loading bay
Current status reports
Minimizes downtimes
Active messaging capability lowers costs
Smart assistants
Enables preventive maintenance

Transparenzy, Efficiency, Control and Security

The LION 4.0 docking portal keeps you up to date on all your sites and relevant loading bays. We provide a plethora of information to help you evaluate and optimize.

Servicing / Maintenance

Make sure you realize early on when your door or dock leveller of the loading bay requires a service.

Everything at your fingertips

The dashboard displays a wealth of information about your loading bay – clearly structured and available at a glance. You can then evaluate the required data in the detail view.

Keeping an eye on things when out and about

LION 4.0 is a web-based portal that provides you with all the data you need at a glance – at any time and wherever you are. The map view clearly displays all your sites, a mouse click is all it takes to directly access the ongoing operations at your warehouse.

Available in:	Europe

Available:	at once

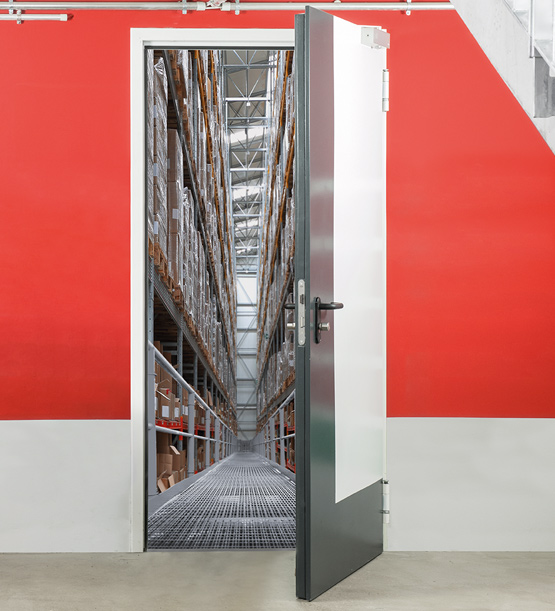

NovoPorta Premio EI 30/ EI 90 -greater heights

Installation at greater heights

Operators of large logistics and despatch centres place great importance on fire protection not inhibiting the mobility of the workforce Novoferm achieves this with its treshold-free installation of Premio EI₂ 30 and EI₂ 90, even at greater heights.

Your advantages at a glance

1 leaf EI₂ 30-1 and EI₂ 90-1 with BRM up to 1,375 x 2,500 mm
Approved for treshold-free installation with lowerable floor seal and additional foam strip in the bottom U profile of the door panel (RS3 treshold)
Optional smoke protection as per EN 1634-3 and soundproofing
Optional fire resistant glazing and many other special features

Available in:	Europe

Available:	at once

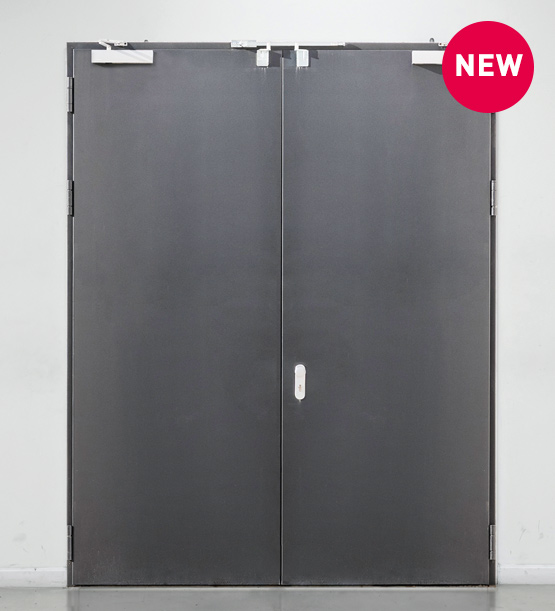

NovoPorta Premio EI2 30 additional sizes

ADDITIONAL SIZES

Now that Novoferm has added larger sizes to its Premio EI₂ 30 range it can satisfy customer requirements for larger doors based on the NovoPorta platform. Premio doors with 1 or 2 leaves and identical appearance are now available up to a height of 3,000 mm. These new options constitute a further marked improvement in project delivery.

Your advantages at a glance

EI₂ 30 fire resistant door with 1 and 2 leaves
Sizes up to 1,500 x 3,000 mm (1 leaf), up to 3,000 x 3,000 mm (2 leaves)
Optional smoke protection as per EN 1634-3 and soundproofing
As standard with a third hinge for added stability on heights of 2,501 mm or more

Available in:	Europe

Available:	3nd quarter 2019

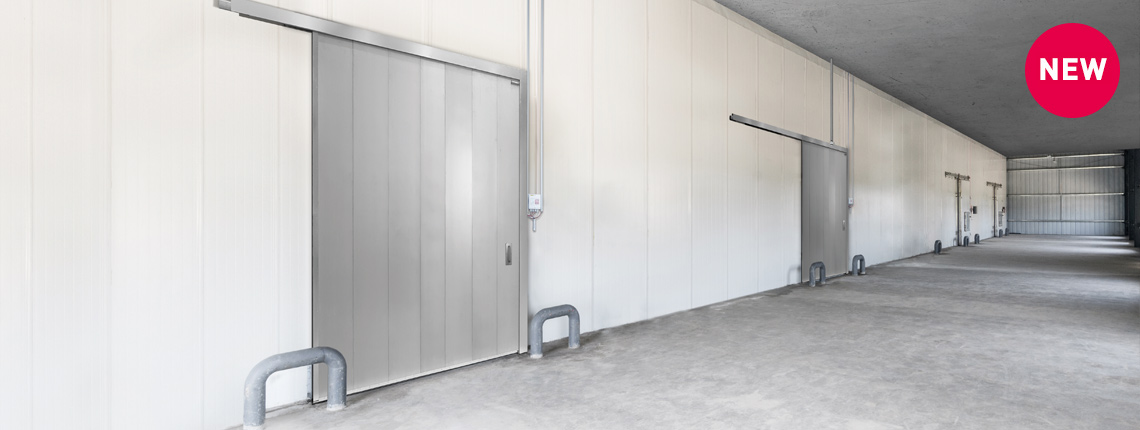

NOVOSLIDE INDUSTRY SLIDING FIRE DOOR

Fire protection for all of Europe

Sliding fire doors offer reliable separation of individual fire compartments in many buildings. Fire barriers of this nature are now recognised in the European product standards EN 16034 (“Fire barriers”) and EN 13241 (“Gates”). The new NovoSlide Industry sliding fire gate from Novoferm has been specially developed to meet these demanding European product standards.

As a CE-marked building component this can be reliably used throughout Europe. The gate complies with all common time classes to meet the different building regulations requirements across Europe. It also creates a visually appealing overall impression.

As sliding fire doors are often installed in large dimensions, the ease of assembly of the door and its running behaviour during operation are further important considerations. Fortunately, the fully overhauled rail design in combination with rollers that have been specially designed to suit this profi le geometry fullfill exactly these requirements.

Your advantages at a glance

Durability of self-closing mechanism tested to EN 1191 at 10,000 cycles (class C2)
Numerous optional features available for adaptation to specific requirements
Numerous installation options for all standard types of wall construction
Pass door without threshold
S_a and S₂₀₀ smoke protection

European sliding fire door according to product standards EN 16034 and EN 13241
Door engineering design tested for fire resistance as per EN 1634, fire resistance classes EI₂ 30, EI₂ 60, EI₂ 90 and EI₂ 120
Doors with 1 or 2 leaves, or telescope design
Sizes up to 8,500 x 6,000 mm

Available in:	Europe

Available:	3nd quarter 2019

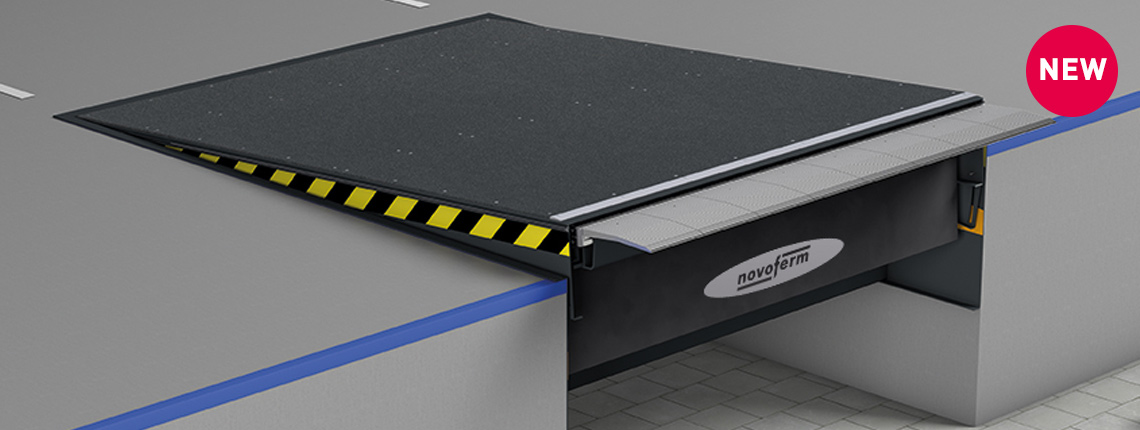

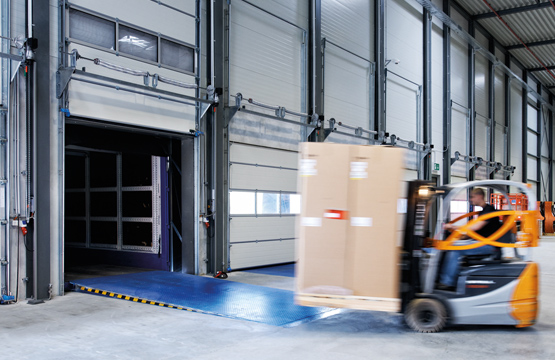

NovoDock EVO X DOCK LEVELLER

Simplifies the loading process ...

... with intellingent technology and convenient operation. Service and consulting are key factors of
loading technology success to ensure loading efficiency. Our experienced specialists can help you find the right solutions for your customers.

Your advantages at a glance

The next generation of dock leveller
When it comes to safety, efficiency and connectivity, EVO X has raised the bar for dock leveller
IQ slide – the smart telescopic lip that follows trucks
Quick dock function – easiest and quickest way to operate a dock leveller
Aluminium slide – the gentle transition from truck to dock leveller
Silence Plus – the new coating that reduces noise by up to 85 %
Logistics 4.0 on board
Novo i-Vision X controller
SLOD function – making sure it is safe to open the back doors of a truck

Available in:	Europe

Available:	2nd quarter 2019

NC Silence Plus

SOUND ABSORPTION COATING

NC Silence Plus sound absorption coating quietens your business. It significantly reduces noise pollution and thus promotes a healthy working environment.

Your advantages at a glance

Noise is reduced by as much as 85 %
Extremely non slip and easy to install
Can be fixed to any loading surface
Durable and resistant to chemicals
Extremely cost efficient
Tested by DEKRA, TÜV, trade association and 3G

Available in:	Europe

Available:	2nd quarter 2019

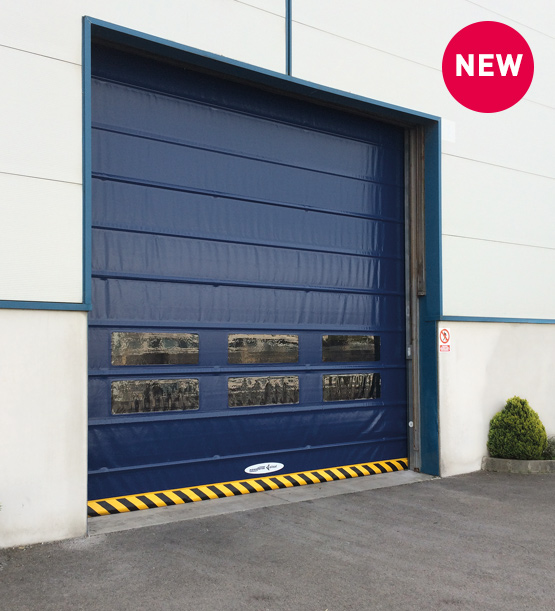

NOVOFOLD RAPID ROLL DOOR

Efficient operation and high stability

NovoFold is a rapid roll door that provides manifold support to logistics workflows. It is particularly efficient and extremely sturdy.

Your advantages at a glance

Max. width 7,000 mm, max. height 6,800 mm
Available up to wind class 5
900 gr/ m² PVC-curtain
Available in 9 standard colours
Opens at a max. speed of 1.5 m/s with FC-operator
Standard painted tracks
Optional light curtain
Very durable and low maintenance

Available in:	Europe

Available:	2nd quarter 2019

New NovoSpeed Thermo

SPACE-SAVING, LOW-MAINTENANCE DESIGN ...

thanks to new locking Technology. A sectional door that simply rolls up when opening can save a lot of space in a warehouse. And if the individual sections don‘t even touch each other, the maintenance effort is also considerably lower.

Your advantages at a glance

Max. width 5,000 mm, max. height 5,000 mm
New spiral for rolling up the door
New rollers
Removable aluminium glass retaining strips
Opening speed 1.1 m/s
Galvanized track
Optional scratch resistant glazing
Standard light curtain
40 mm sandwich panels with microprofi ling, 360 mm high
Extremely long service life and very low maintenance thanks to contactless winding of the sections
Also available as a “normal” sectional door with horizontal tracks

Availability in:	Europa

Available:	at once

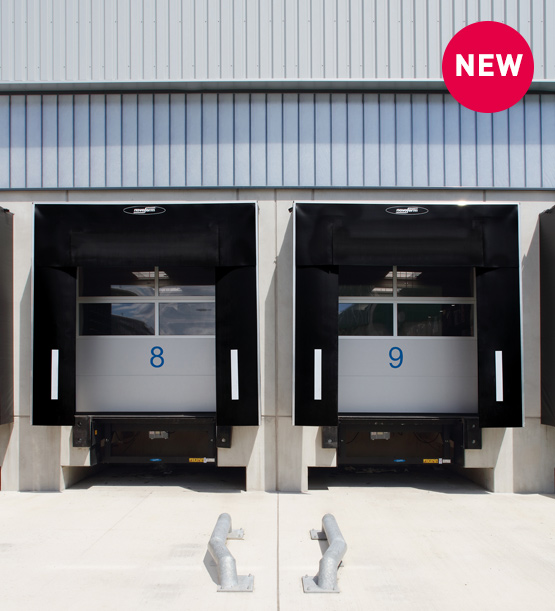

Door Thermo 80 mm - Aluminium sections

Thermally broken Panels ...

... for a constant internal Temperature. Double skin sectional door with thermally separated steel panels. This door is the perfect choice for refrigerated and frozen storage areas, industrial halls, warehouses and similar places where the loss of heat constitutes a major risk or where maintenance of a constant temperature is essential to avoid compromising the safety and quality of the goods.

Your advantages at a glance

Max. width x height = 8,000 x 6,000 mm, max. surface area (width x height) = 42 m²
All sections max. 6,000 mm wide
Thermo 80 mm sectional door U value: 5,000 x 5,000 mm: 0.49 W/ m²K
Wind load class 3 - 4 as per EN 12424, wind resistant to 12 - 13 Beaufort (118 - 149 km/ h)
Air and water permeability: Class 3
Standard panels with microprofiling at no extra cost
Optional manual or electric operation
Complies with EN 13241

Availability in:	Europa

Available:	2nd quarter 2019

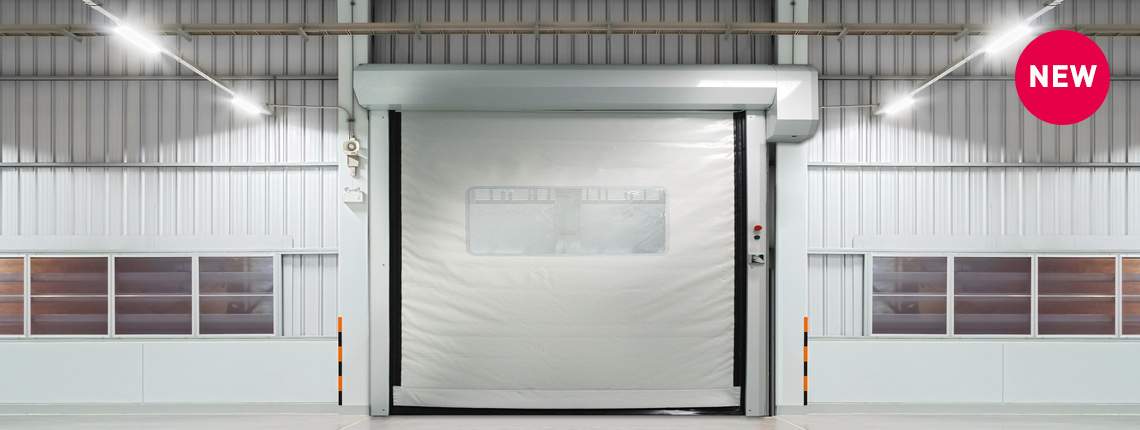

SELF-REPAIRING RAPID ROLL DOOR

Seamless functionality - Even under heavy loads

NovoZip – our self-repairing rapid roll PVC door – is the perfect solution for fast and frequent passages. Not least because of the self-lubricating guides. This self-repairing principle reduces downtimes and keeps workflows running smoothly.

Your advantages at a glance

Controller: 230 V or 400 V frequency converter
Wind load (EN 12424 ) max.: Class 3
Emergency open: Emergency crank, emergency power supply
Standard galvanized and painted door design
The door curtain runs along the self-lubricating guides
NovoZip can be fitted with transparent windows for more light incidence and better visibility through the door

Superb seal integrity saves valuable energy
Sizes to: 4,000 mm x 4,000 mm
Curtain: 9 standard colours
Max. opening speed: 2.0 m/ s
Max. closing speed: 1.0 m/ s

Available in:	Europe

Available:	2nd quarter 2019

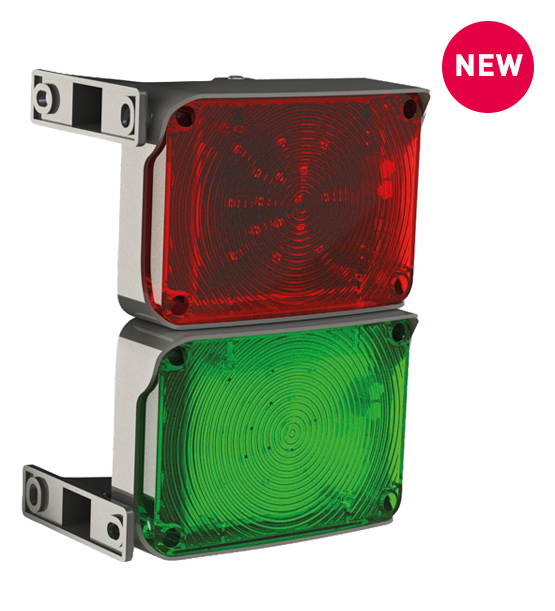

New traffic light for industrial doors and loading bays

Traffic light with flexible configuration

Traffic light signals let both the driver and the loading crew know whether the loading bay is ready for the truck to dock and/ or loading can commence. With its variable and flexible configuration, the new traffic light system easily satisfies all requirements.

Your advantages at a glance

Protection class IP 65
Temperature range -20 °C to +60 °C
Energy-saving LED technology
Optional 230 V and 24 V connection
Traffic lights can be set to steady or flashing
Catch locks for alignment and adjustmen

Available in:	Europe

Available:	2nd quarter 2019

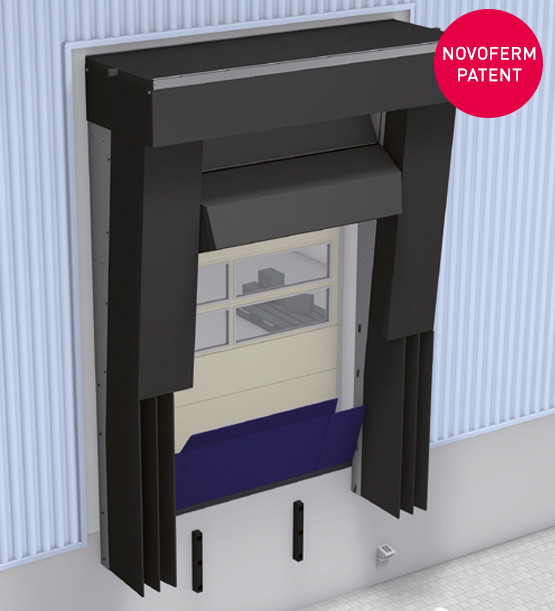

NovoSeal for Cross-Docking

Specifically designed for small delivery vans

NovoSeal VS250. With the fast growth of online retail, the demand for delivery vans in city centres is booming. The plethora of different van designs creates special problems with seal integrity when loading and unloading. NovoSeal VS250 is perfectly capable of mastering this complex task.

Your advantages at a glance

Customized door seal with adjustable horizontal cushions
Specifically designed for small delivery vans
Manually adjustable horizontal cushions
Pleated cushions for perfect seal integrity at the sides

Available in:	Europe

Available:	at once
